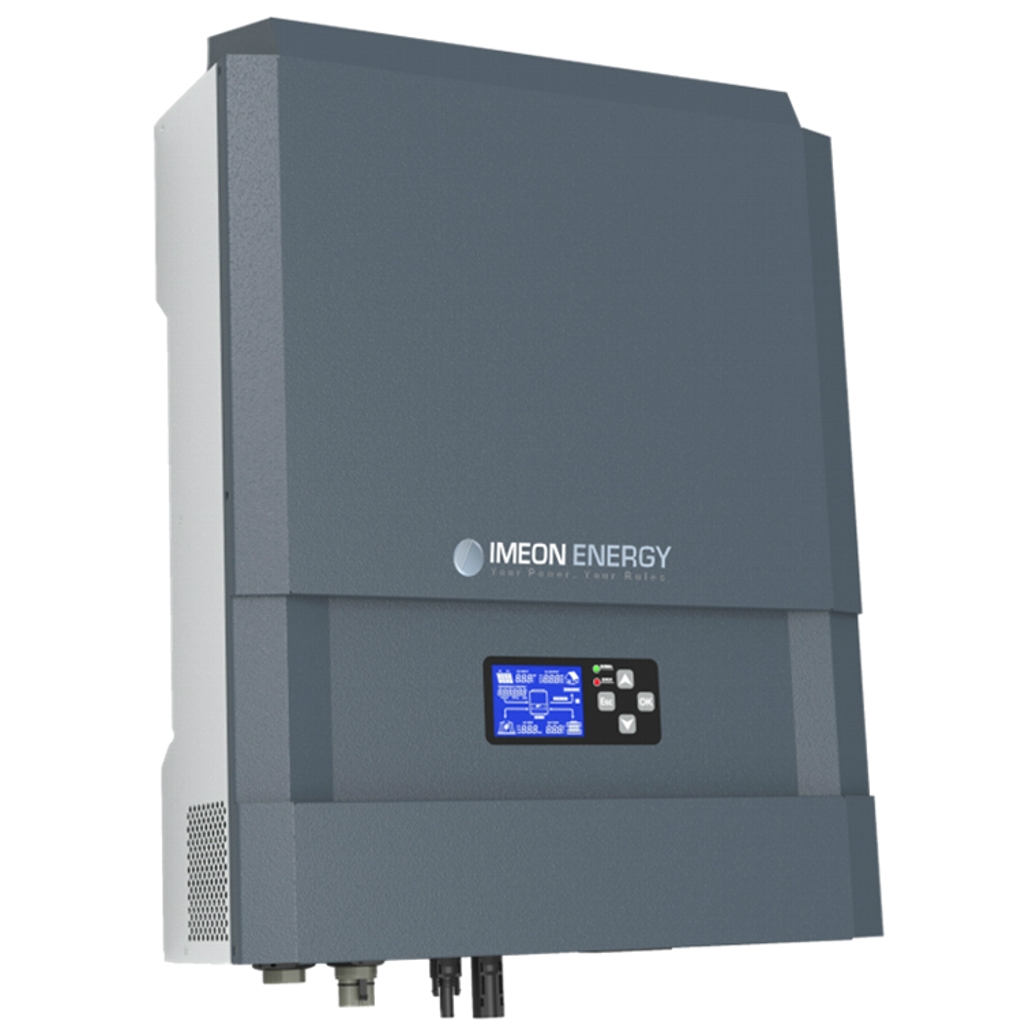

Hybrid inverter IMEON 3.6
“ALL IN ONE” – The ideal solution for your photovoltaics
IMEON 3.6 – a revolution in renewable energy

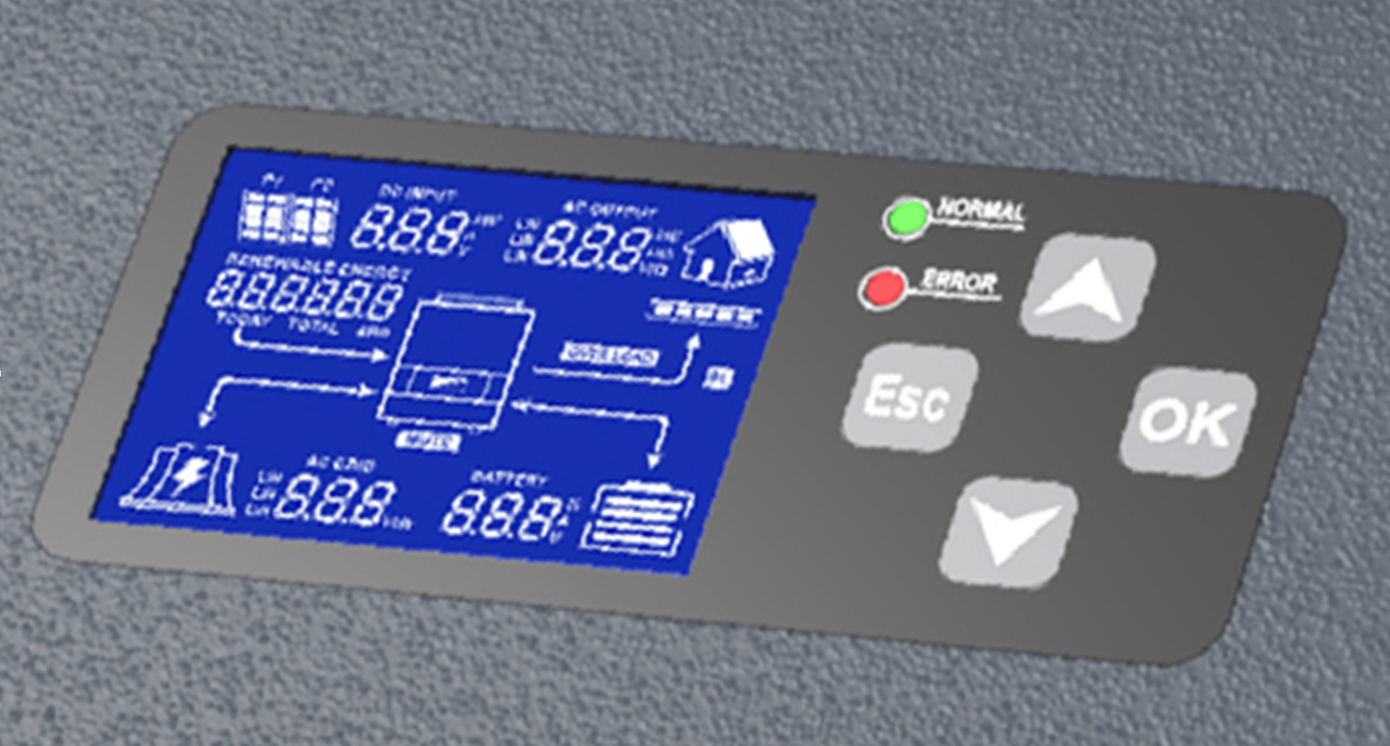

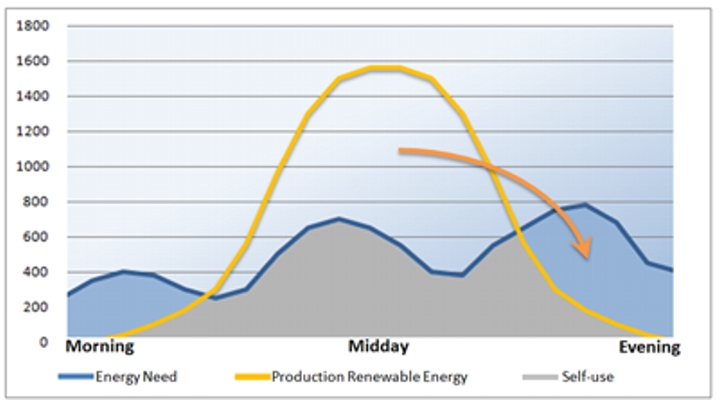

There is no more need for complex solar systems because with the intelligent device IMEON 3.6 you get a complete photovoltaic technology with the accumulation of electricity in a single device. You can increase a proportion of your own energy consumption by up to 30% by storing the energy in batteries. The intelligent operation and monitoring of IMEON 3.6 enables to monitor the system in real time.
IMEON 3.6 – All in One
All functions of IMEON 3.6 are integrated into one control unit and therefore it replaces a few components – a controller, a charger and an inverter. You store the surpluses of your energy production to the accumulators which can be used anytime if needed. Thus you save considerable electricity costs. The whole system works both as a back-up (UPS) and also as an insular installation which is useful for places where the grid is not available.
Quotation
Get your free quotation from one of our sales representatives. Please enter your email address and we will be in touch with you shortly.

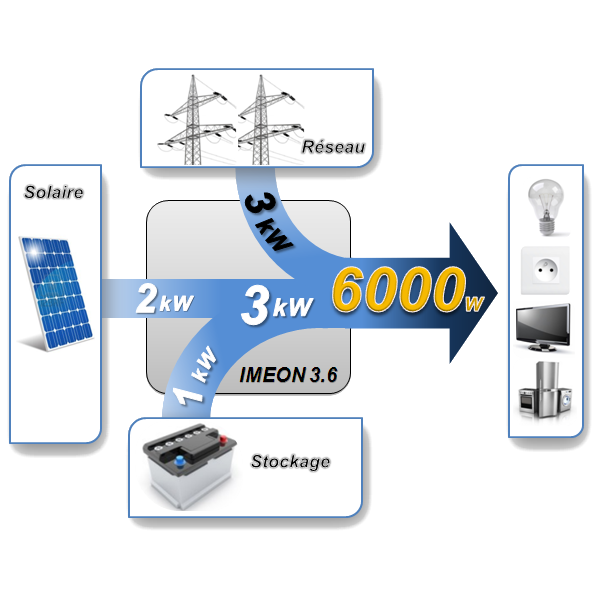

IMEON 3.6 represents a concentration of innovation and technology. Multi-sources phase coupling (PCE or Phase Coupling Energy) is used to couple seral energy sources (e.g. PV, batteries, grid). There is no more need for source switching which often leads to micro-cuts. If you need a total output of 3kW it is possible to use 1kW of solar energy, 2kW of battery power or from the grid, alternatively you can use both sources at the same time.
Basic parameters of IMEON 3.6:
AC output
Continuous output power at 40 °C: 3000W
Maximum output power: 6000W
Output: 13A
PV input
Maximum input of panels: 3150Wp
Number of MMP Trackers: 1
Input voltage range: 120–450VDC
Baterries:
Battery voltage: 48VDC
Battery type: Gel or AGM
Dimensions:
Width x height x depth: 540 × 440 × 135 mm
Features overview
Who is suitable for this product?
Why choose us?
Stability, tradition and background
TERMS Corp. was established in 1992 as a purely technological company which builds up on a high quality, knowledge, a long-term development and a stability.
Careful selection of suppliers and components
We choose only those suppliers and brands which have long-term history, a high stability and can survive in a turbulent market.
Warranty up to 20 years
The standard warranties of key components are for 10 years. However it is possible to extend them for a whole period of a planned yield upon investment up to 20 years.
Reliable business partner for the future
We offer to our clients not only a standard periodical service but also possibilities of optimization and the adjustment of existing installations to reach maximum returns.
It does not finish at the electricity production
As we have knowledge of different lines of business, such as automation, telecommunication, measurement and regulation, we offer a complex solution.
The optimization and progressive integration and regulation of all energetic systems in your house can also be a part of our services.
We monitor the market and invest in innovation
With the continuous development of products and services our company provides you the background and stability which is essential for a long-term investment in renewable resources.
Would you like to get more information?
We will be more than happy to help you.
