Photovoltaic water heating
Photovoltaic storage heaters for a combined water heating system using AC and DC.

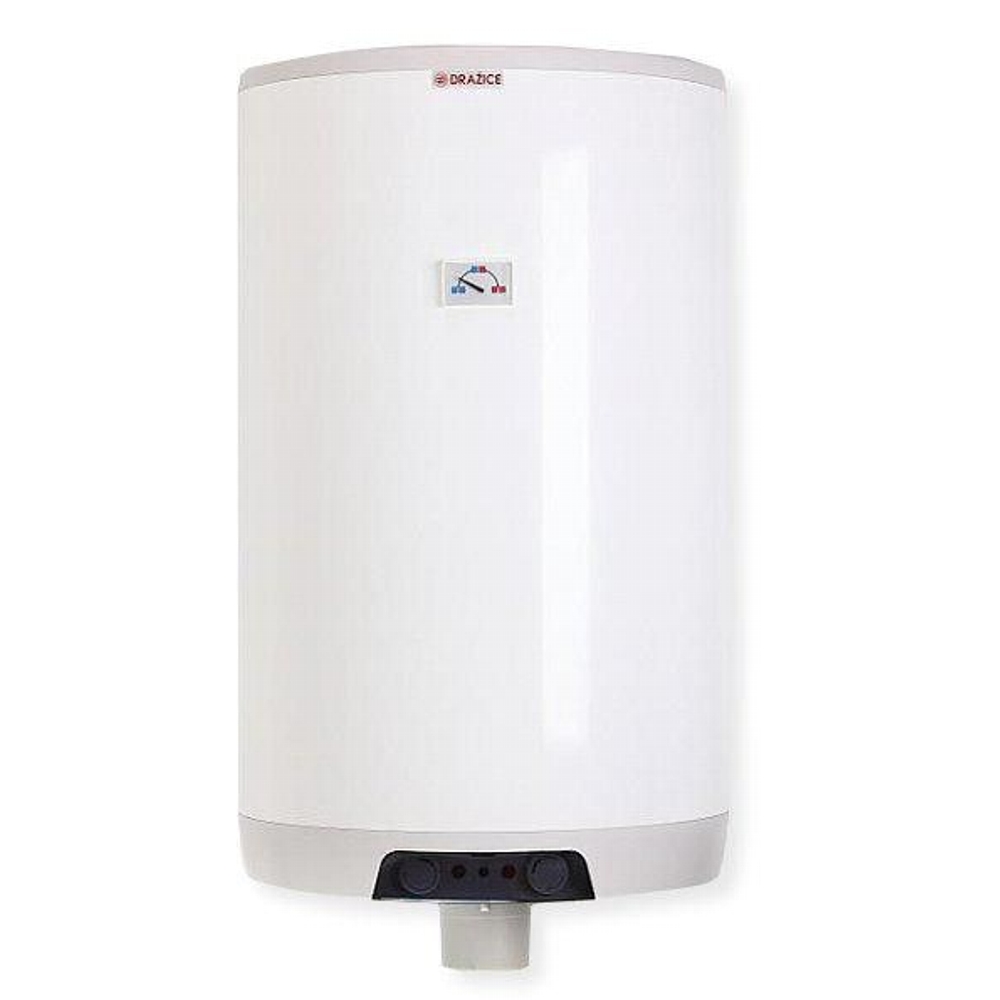

Boiler LX ACDC/M+K(W) ABC
Electric water heaters, a type LX ACDC / M + K, use alternating current (AC) from the grid for heating water and direct current (DC) from PV panels which provide eco-friendly production of hot water and save the owner a considerable amount of money for gas or electricity from the grid.
Are you interested in a boiler LX ACDC/M+K(W) ABC?
Do not hesitate to contact us by filling in our form. Alternatively you can visit our E-SHOP. . Please read below if you want more information about the PV boiler LX ACDC/M+K(W) ABC.
Quotation
Get your free quotation from one of our sales representatives. Please enter your email address and we will be in touch with you shortly.

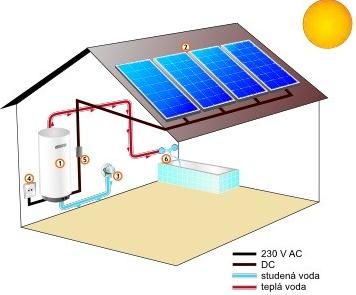

A combined water heating system using AC and DC.

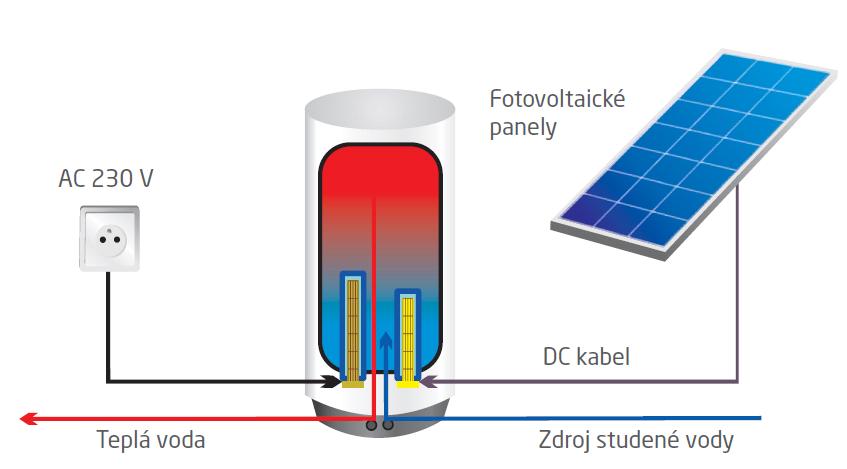

Water heaters LX ACDC/M+K are designed for heating by using both sources of energy. The stable source, AC from the grid, continuously heats the water in the heater based on the temperature controlled by a thermoregulator T1. In general the temperature of 45 °C is recommended. After reaching the requested temperature the thermoregulator switches off. Then water heating is done by DC which is controlled by a thermoregulator T2. The recommended maximum temperature is 75°C. If the water temperature falls below 45°C both AC and DC heat up very quickly and efficiently.

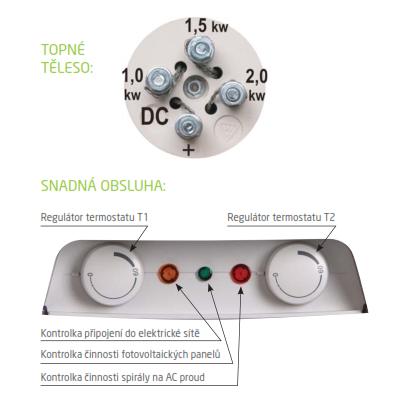

Water heaters LXACDC/M+K(W) A,B,C are supplied with a multi-purpose DC convector which enables a connection of all three options of output – A, B and C through a mechanic interconnection of the incoming conductor directly on a body. In the production the body is always connected to 2kW (8 pcs of panels). If you use a smaller number of panels (4 pcs = 1.0kW or 6 pcs = 1.5 kW) it is necessary to switch the incoming conductor over the body, including a green pilot-light for the correct outlet from the body. After reaching the set temperature in the heater, the heater can redirect DC to another device (e.g. additional heater) or DC/AC convertor which supplies the electricity to the grid.
Features overview
Who is suitable for this product?
Why choose us?
Stability, tradition and background
TERMS Corp. was established in 1992 as a purely technological company which builds up on a high quality, knowledge, a long-term development and a stability.
Careful selection of suppliers and components
We choose only those suppliers and brands which have long-term history, a high stability and can survive in a turbulent market.
Warranty up to 20 years
The standard warranties of key components are for 10 years. However it is possible to extend them for a whole period of a planned yield upon investment up to 20 years.
Reliable business partner for the future
We offer to our clients not only a standard periodical service but also possibilities of optimization and the adjustment of existing installations to reach maximum returns.
It does not finish at the electricity production
As we have knowledge of different lines of business, such as automation, telecommunication, measurement and regulation, we offer a complex solution.
The optimization and progressive integration and regulation of all energetic systems in your house can also be a part of our services.
We monitor the market and invest in innovation
With the continuous development of products and services our company provides you the background and stability which is essential for a long-term investment in renewable resources.
